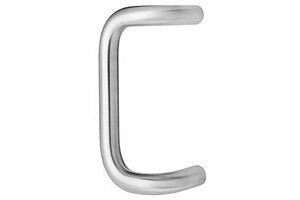

Assa Abloy Pull Handle BF158

Push and pull bar is designed to fit together. Standard-duty model is 0.065″-thick wall tubing. Includes mounting hardware.

Material: Aluminum, Brass, Bronze, or Stainless Steel

Fastener: 1⁄4 -20 x 2-1⁄4″ Thru Bolt & Finish Washer (standard 1-3⁄4″ door)

Options:

Back to back mounting in pairs — use BTB suffix and mounting type number (BF158BTB16)
Concealed mounting single pulls — use C suffix and mounting type number (BF158C17)
Advise if door thickness is other than 1-3⁄4″
Heavy duty versions of most fastening types available — use suffix HD to fastening type number (BF158BTB16HD)
Mounting selections for standard duty 1/4-20 can be viewed under Mounting Details on this site

Features: Recommended for ADA openings

Part Number	Material Size	CTC	Overall	Base	Projection	Clearance	Offset	Weight	ANSI A156.6
BF158	1″ dia.	12″	13″	1″	3-1⁄2″	2-1⁄2″	4″	4.8 lbs.	J402
