Premium sliding door system featuring superior thermal insulation, noise reduction up to 45dB, and triple glazing capacity up to 46mm. Accommodates large openings up to 3500mm height and 440kg sash weight. Available in sliding and lift-and-slide editions with multiple configurations.

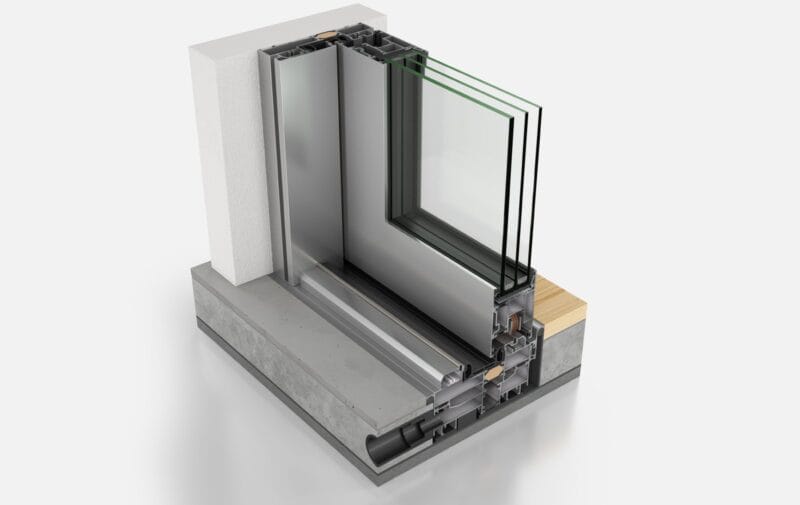

Elvial ESSENCE SL60 HI² Aluminum Sliding Door System
The ESSENCE SL60 HI² combines exceptional technical performance with refined aesthetics for contemporary architectural applications.
Key Features:
- Profile depth: 60mm
- Maximum dimensions: 3500mm height x 3000mm width
- Glass thickness: Up to 46mm triple glazing
- Maximum sash weight: 440kg
- Thermal insulation: Uf from 2.7 W/m²K
- Thermal performance: Uw down to 0.96 W/m²K
- Sound reduction: Up to 45dB
- Air permeability: Class 4
- Water tightness: 9A
- Wind resistance: C5/B5
Design Excellence:
- Minimal 48mm interlock profile in successive constructions
- 8mm perimetrical same-level appearance
- Ghost glazing gaskets for clean aesthetics
- Concealed drainage system
- Available in successive, meeting stile and inwall configurations
- Angular construction options for inner and outer corners
- Compatible with flyscreens and shutters
Technical Features:
- Up to 28mm insulating bars with 25% glass fiber reinforcement
- ELVIAL I² Innovative Insulation Technology
- Multi-level sealing system with Q-LON gaskets
- Special glazing load transfer support system
- Heavy-duty stainless steel rail system
- Enhanced joint corners and mechanical alignment
Available Configurations:
- Successive sliding (2-5 sashes)
- Meeting stile (4-6 sashes)
- Inwall solutions with integrated flyscreen/shutter
- Angular constructions (inner/outer corners)
- Multiple track options
Ideal for residential and commercial projects requiring superior thermal and acoustic performance combined with contemporary minimal aesthetics. Perfect for large openings where energy efficiency and sound insulation are essential.
$0.00
Available on backorder
