A sophisticated aluminum window system combining elegant aesthetics with superior thermal performance. Features ELVIAL I² Innovative Insulation Technology, delivering up to 38% improved energy efficiency with Uf values as low as 1.1 W/m²K.

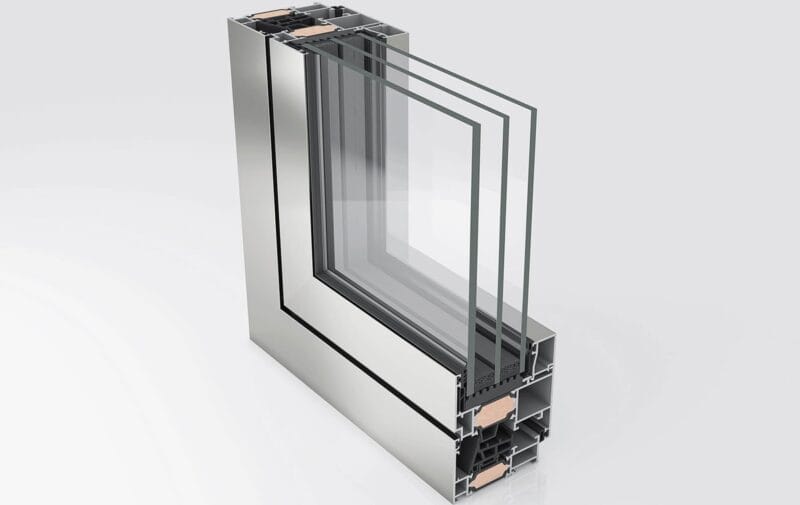

Elvial ESSENCE W67 HI².CE Premium Aluminum Window System
The ESSENCE W67 HI².CE represents the pinnacle of modern window design, merging aesthetic excellence with cutting-edge thermal technology.
Key Features:
- System Depth: 67mm
- Maximum Sash Dimensions: 2800mm (height) x 1400mm (width)
- Maximum Glass Thickness: 60mm
- Maximum Sash Weight: 180kg
- Thermal Performance: Uf ≥ 1.1 W/m²K
- Air Permeability: Class 4
- Water Tightness: E1350
- Wind Load Resistance: C5/B5
Advanced Technology:
- ELVIAL I² Innovative Insulation Technology creates an extra insulation zone in the profile’s middle chamber
- 32mm insulating bars with 25% glass fiber reinforcement
- Co-extruded gasket system for enhanced energy performance
- Foam insulating profile around glazing perimeter
Security & Durability:
- Advanced 3-level waterproofing system
- Vulcanized EPDM corners for maximum sealing
- Special load transfer system for glass weight
- Hidden tilt and turn mechanism option
Design Features:
- Minimal face height of 89mm (Frame-Sash)
- Same level appearance on inner side
- Minimal T-profiles with 10mm reinforcement
- Available in multiple configurations including fixed, tilt & turn, and special angular constructions
Ideal for both residential and commercial applications, the ESSENCE W67 HI².CE window system delivers outstanding thermal insulation, weather resistance, and architectural flexibility.
