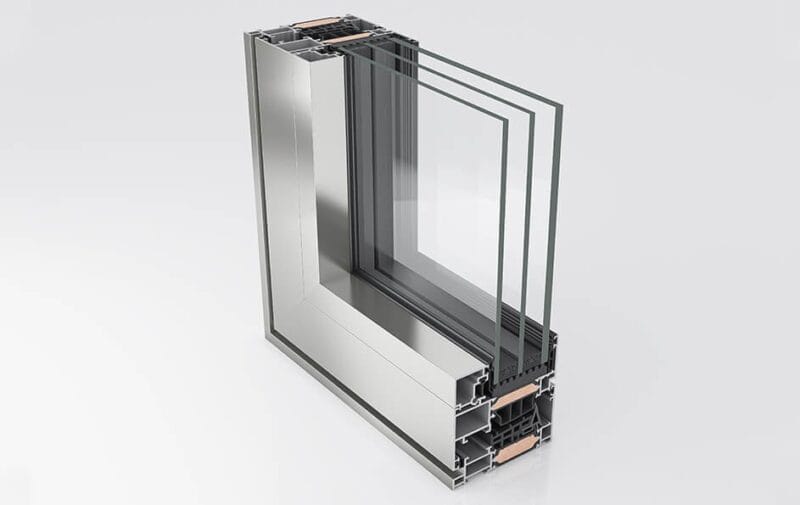

Elvial ICONIC W77 AI².CE Energy-Efficient Aluminum Window System
Elvial ICONIC W77 AI².CE Energy-Efficient Aluminum Window System - Image 2
Elvial ICONIC W77 AI².CE Energy-Efficient Aluminum Window System - Image 3
Elvial ICONIC W77 AI².CE Energy-Efficient Aluminum Window System - Image 4

Elvial ICONIC W77 AI².CE Energy-Efficient Aluminum Window System

Categories: ,

The ICONIC W77 AI².CE represents the pinnacle of aluminum window technology, combining exceptional performance with sophisticated design:

Key Features:

  • System Depth: 77mm
  • Thermal Performance: Uf values from 0.74 W/m²K
  • Maximum Glass Thickness: 70mm
  • Maximum Sash Dimensions: 2800mm (height) × 1400mm (width)
  • Maximum Sash Weight: 180kg

Energy Performance:

  • ELVIAL I² Innovative Insulation Technology
  • 42mm insulating bars with glass fiber reinforcement
  • Co-extruded gaskets for optimal thermal flow
  • Foam insulating profile in glazing zone

Advanced Sealing System:

  • 3-level waterproofing with EPDM and co-extruded gaskets
  • Vulcanized EPDM corners for maximum edge sealing
  • Specialized EPDM end cups for double sash configurations

Certified Performance:

  • Air Permeability: Class 4
  • Water Tightness: E1200
  • Wind Load Resistance: C5/B5
  • Sound Reduction: Up to 50dB

Design Features:

  • Same level appearance on inner side
  • Hidden tilt and turn mechanism option
  • T-profiles with minimal 10mm inner reinforcement
  • Multiple typology options including fixed, tilt & turn, and special configurations

Perfect for architects and builders seeking superior energy efficiency without compromising on design flexibility and durability. CE certified and tested by Ift Rosenheim Institute in Germany.

Email Us For Prices

Share
Compare

This item is on backorder and will take 4-6 weeks to ship

Description

High-performance aluminum window system featuring ELVIAL I² Innovative Insulation Technology, offering superior thermal efficiency (Uf ≥ 0.74 W/m²K), advanced sealing, and versatile design options. Ideal for premium residential and commercial applications.
