A versatile aluminum window system designed for Mediterranean climates, featuring enhanced thermal insulation with ELVIAL I² Technology. Perfect for both modern and traditional architecture with Uf values from 2.4 to 2.0 W/m²K and a sleek 59mm profile depth.

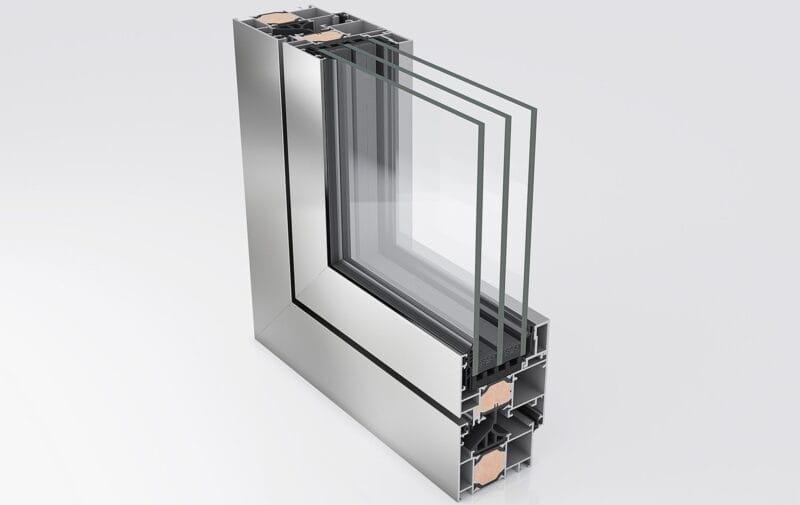

Elvial W59 SI².CE – Advanced Thermal Window System for Mediterranean Climate
The ELVIAL W59 SI².CE window system combines Mediterranean-inspired design with advanced thermal performance for diverse architectural applications.
Key Features:
- System depth of 59mm with minimal face height of 94mm
- Superior thermal insulation with ELVIAL I² Technology and 24mm insulating bars
- Triple-level waterproofing with specialized EPDM gaskets and vulcanized corners
- Advanced drainage system for optimal water management
- Sound reduction rating of 40dB
Technical Specifications:
- Maximum sash dimensions: 2,300mm height x 1,000mm width
- Maximum sash weight: 130kg
- Glass thickness up to 46mm
- Air Permeability: Class 4
- Water Tightness: E1650
- Wind Load Resistance: C5/B5
- Three energy level options with Uf values from 2.4 to 2.0 W/m²K
Available Typologies:
- Fixed windows
- Single and double sash options
- Tilt & turn windows
- Top hung windows
- Window walls
- Angular constructions
- Special architectural configurations
Perfect for residential and commercial projects in Mediterranean climates where thermal efficiency, durability, and aesthetic flexibility are essential. Features hidden hinges and sophisticated handles for a clean, modern appearance.
Backed by ELVIAL’s quality assurance and comprehensive testing certifications. Technical documentation, DWG files, BIM models, and test reports available upon request.
