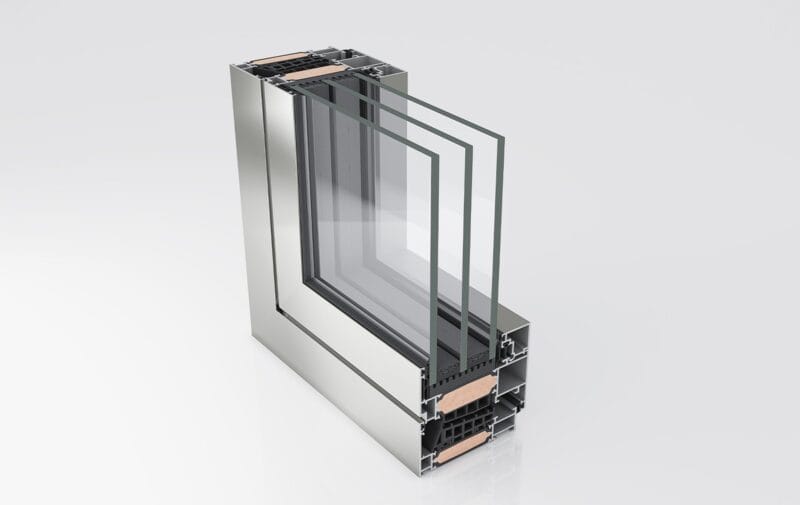

Elvial W89 PHI².CE Passive House Window System
Elvial W89 PHI².CE Passive House Window System - Image 2
Elvial W89 PHI².CE Passive House Window System - Image 3
Elvial W89 PHI².CE Passive House Window System - Image 4

Elvial W89 PHI².CE Passive House Window System

Categories: ,

The ELVIAL W89 PHI².CE is an advanced aluminum window system engineered specifically for passive house construction and maximum energy efficiency.

Key Features:

  • 89mm system depth with robust thermal insulation
  • ELVIAL I² Innovative Insulation Technology on all profiles
  • 54mm insulating bars with glass fiber reinforcement
  • Triple-level sealing system with vulcanized EPDM corners
  • 180° opening capability in CE edition
  • Maximum sash capacity: 200kg weight, 2800mm height, 1600mm width
  • Supports glass thickness up to 83mm

Technical Advantages:

  • Thermal Performance: Up to Uf ≥ 0.73 W/m²K
  • Four energy level options for different requirements
  • Foam insulating profile around glazing perimeter
  • Co-extruded gaskets for optimized isothermal flows
  • Special EPDM specimen for adjoining profile end caps
  • Support system for optimal glazing load transfer

Available Configurations:

  • Fixed windows
  • Single/double sash opening windows
  • Tilt & turn windows
  • Top hung windows
  • Window walls
  • Angular constructions
  • Special typologies with multiple combinations

Ideal for passive house construction and projects requiring superior energy efficiency, the W89 PHI².CE delivers exceptional thermal performance while maintaining elegant aesthetics. Certified design ensures minimal energy consumption and reduced carbon footprint.

Email Us For Prices

Share
Compare

This item is on backorder and will take 4-6 weeks to ship

Description

Premium thermal insulation window system certified for passive house construction, featuring Uf values as low as 0.73 W/m²K. Combines superior energy efficiency with sophisticated aesthetics and ELVIAL I² Technology for optimal performance in extreme climates.
