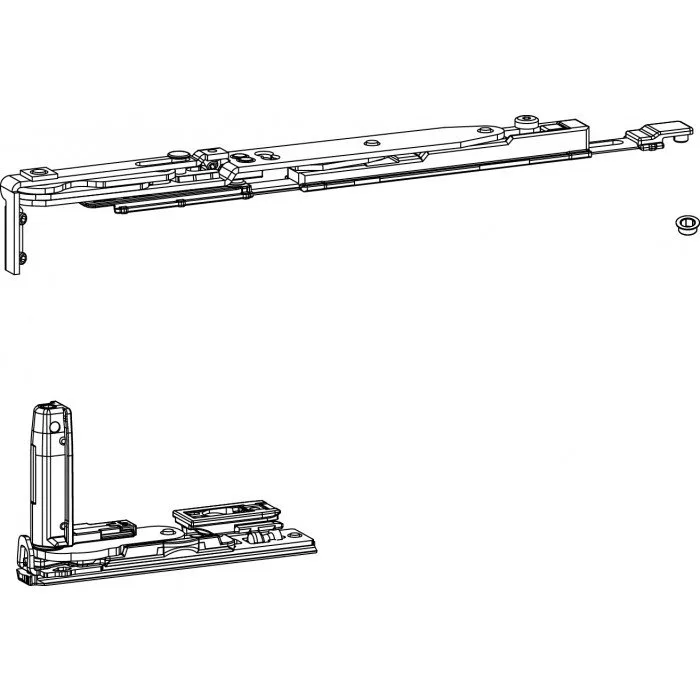

Description
042062
Materials
Body of hinges and arms in stainless steel and zamak. Rod, connecting bracket, pins, screws and grub screws in stainless steel.
Technical Details
| Cross-section type | C001 |
| Range | W 641 ÷ 1700 |
| Hand | RX |
