Description

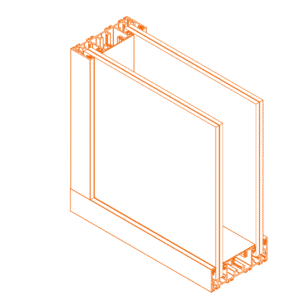

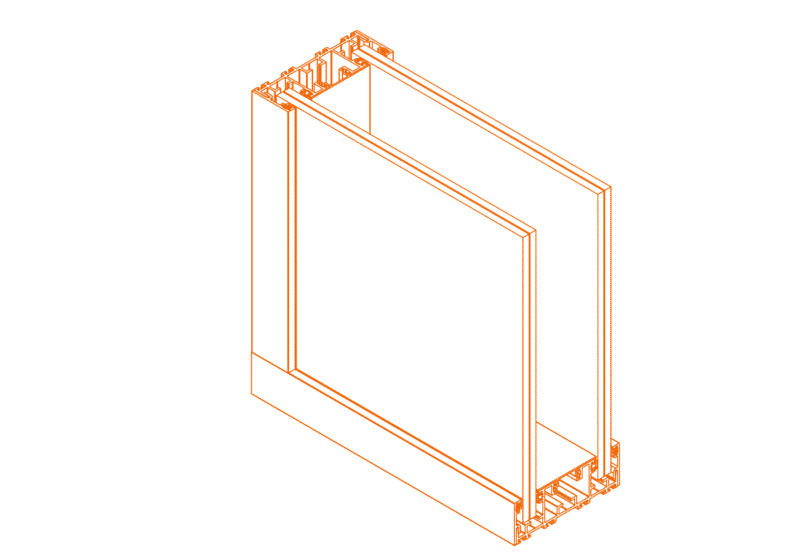

The PS80 partition system allows configurations with one, two, or three single glass panes, with a total construction thickness of 80 mm. It can be combined with the CALMO door model and SKINNY 80 series doors. Designed for applications that require acoustic performance.
Benefits
- Maximum transparency
- Quick installation
- Slim profiles for minimal look
- Sound proof certified
Dimensions
| Item | Value |
|---|---|
| Base profile width | 80 mm |
| Base profile height | 28 mm |
| Cross beam profile | 80 mm × 32 mm |
Technical features
| Specification | Value |
|---|---|
| Maximum construction height | 3500 mm |
| Glazing thickness range | 8–13,52 mm |
| Glazing type | Tempered, monolithic or laminated |
| Sash sealing type | Invisible rubers |
| Number of glass panes | 1–3 |
| Door compatibility | CALMO door; SKINNY 80 series doors |
Acoustic certifications
| Report No. | Standard | Configuration (per certificate) | Result | Date |
|---|---|---|---|---|
| A.719.2017 | DIN EN ISO 140-3:2005 | Three panes (5 – 1.5 PVB – 4 mm), 18 mm interspace, total 80 mm | Rw (C;Ctr) = 47 (−2; −8) dB | 19 / 06 / 2017 |
| A.720.2017 | DIN EN ISO 140-3:2005 | Two panes (5 – 1.5 PVB – 4 mm), 46 mm interspace, total 80 mm | Rw (C;Ctr) = 46 (−2; −7) dB | 19 / 06 / 2017 |
| A.1034.2021 | ISO 10140-2:2010 | Glass partition PS80.101/66.2 AC; details per report | Rw (C;Ctr) = 49 (−2; −6) dB | 24 / 06 / 2021 |
Finishings
Available in stock
| Anod.silver |
| Black matte 9005 |
