Description

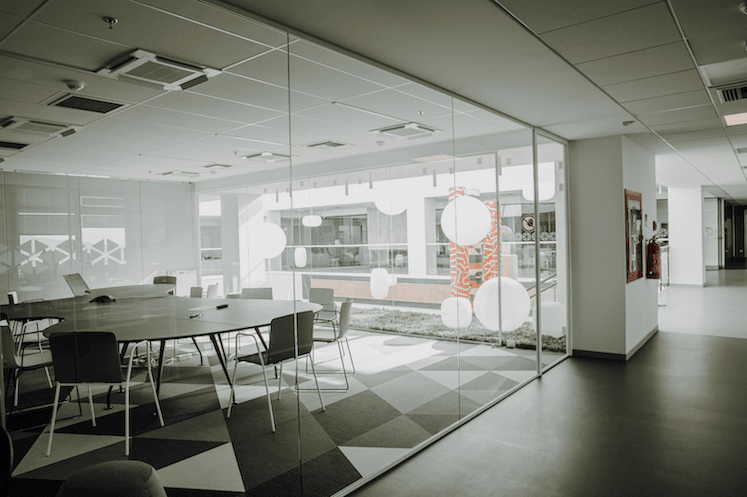

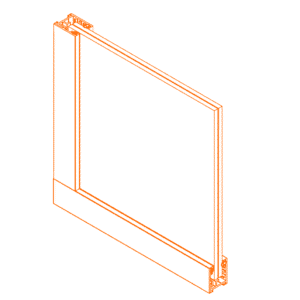

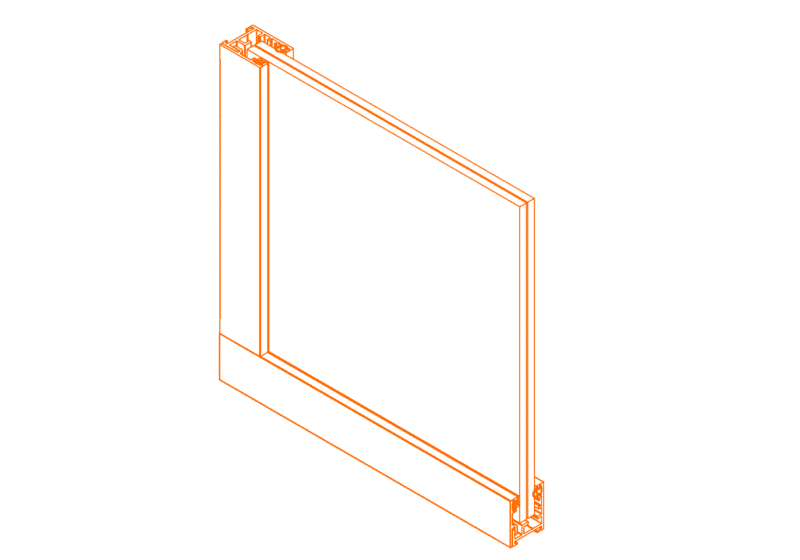

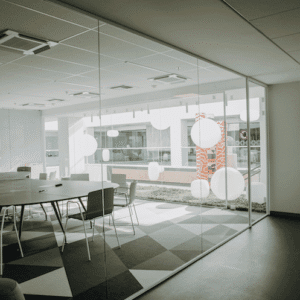

The Vi28 is a single-glazing partition system with profile dimensions 23 mm × 28 mm. The glass stabilization rubers are hidden within the profile.
Benefits
- Invisible rubers
- Maximum transparency
- Quick installation
- Slim profiles for minimal look
Dimensions
| Item | Value |
|---|---|
| Base profile width | 23 mm |
| Base profile height | 28 mm |
Technical features
| Specification | Value |
|---|---|
| Maximum construction height | 3000 mm |
| Glazing thickness range | 8–11.52 mm (site); brochure lists 8–12 mm |
| Glazing type | Tempered, monolithic or laminated |
| Panel sealing type | Invisible rubers |
| Number of glass panels | 1 |
| Door compatibility | Can be combined with doors from the “U” series |
Certifications
| Type | Details |
|---|---|
| Soundproof | Rw (C;Ctr) = 37 (–1; –3) dB — DIN EN ISO 140-3:2005 |
Glass connection options
| Connection | Method |
|---|---|
| Glass ↔ Glass | With gasket |
| Glass ↔ Glass | With double-sided adhesive tape |
Finishings
Available in stock
| Anod.silver |
| Black matte 9005 |
