Description
Technical Characteristics

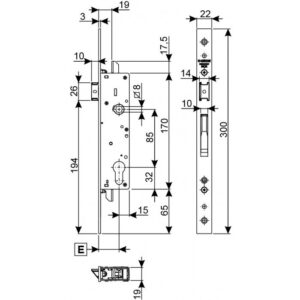

Lock compatible with European profile cylinders, has a burglar-proof tilting bolt and a reversible spring latch (RH or LH), adjustable from 10 to 15 mm. Bolts operated with the cylinder. Spring latch operated with the cylinder and with the 8 mm handle spindle. Cylinder handle C/C distance 85 mm. Bolt with thickness of 10 mm and minimum protrusion of 24 mm. Spring latch with 10 to 15 mm protrusion. The pair of two-way adapters supplied with the lock, for connecting to the polyamide rod, enables making top bottom locking at several points. Stroke is 15.5 mm. The adapters for connecting to the rod have connecting pins size 8 mm.
Functions
Central lock, slip-on version for aluminium stiles, with adjustable spring latch and tilting bolt, ready for rod connection for top/bottom fastening mechanism.
Materials
Lock cover plate and case plate in zinc plated steel Flat front in stainless steel Spring latch and bolts in nickel-plated steel Rod connection adapters in zamak Polyamide cylinder machining cover studs Pins for fixing adapters and screw for fixing cylinder in zinc plated steel Lock fixing screws in stainless steel
