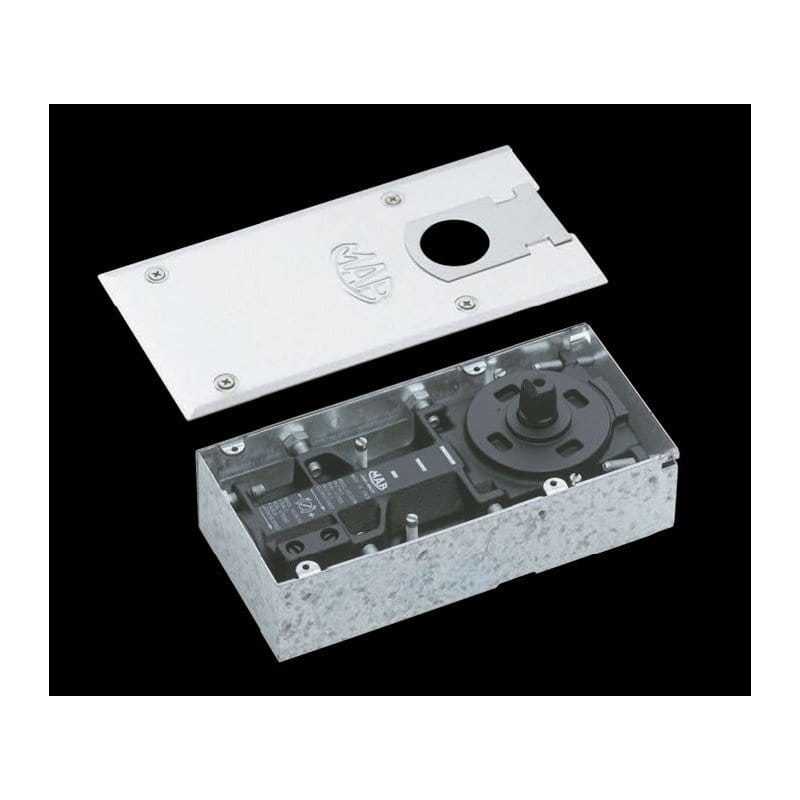

MAB ASSA ABLOY 7135 in-floor door closing mechanism. Suitable for wood, metal and glass doors.
For door dimensions up to 37in x 91in and weight up to 220lbs. Opening up to 180° on both sides
Ideal for commercial and residential interiors due to compact size and low opening force (required by children, elderly and disabled).
Wide range of vertical adjustment to solve problems of undue door friction without the need for additional shaft extensions.
Opening up to 180 ° on both sides with hydraulic control from approx. 135 °. Free rotation from 135 ° to 180 °. Hold Open at 90 °, 105 ° or any angle between 135 ° and 180 °.
Closing speed is controlled by two easily adjustable independent valves.
Soft closing or strong locking action to ensure proper closing in hard locking locks as well.
Architectural finishes: polished stainless steel covers, satin stainless steel, polished brass.
