Description
*Due to the production of new models the balls may turn into mushrooms but their function remains the same.
*The dimensions of the balls or mushrooms may change without notice for certification reasons, all you have to do is move the objects.
It offers security in 3 points.
The revolutionary system of the CISA Multitop Pro is that in addition to the 3 main locking points there are two additional ones that appear when the lock is in the locked position. The two extra locks are like “hooks” (nails) that are presented on the upper and lower locking pin. This feature offers greater resistance to tampering.
Complete and easy replacement of versions already installed
Suitable for aluminum doors
Center: 35mm
Three one-piece locking pins & two extra hook locks. The locking pins are reinforced with a thickness of 12mm.
Combines with any cylinder, plain or safety (not included).
Cogwheel. One-piece tongues & hooks. Square plate. Face width 24mm. Black color
Lock height 2.3m (adjustable). Upper margin of adjustment 350mm. Lower margin of adjustment 150mm
It is easily adapted to any aluminum door.
The basic dimensions of the Multitop Pro U-shaped 3-point ball lock are no different from other cisa locks or those on the market.
Very easy replacement in aluminium-PVC-wood doors.
Possibility of replacing previous models of a similar type, without extra work on the door. For example if you have an old CISA 3-point lock, you can replace it with the CISA Multitop Pro.
Anti-masks are included in the package.

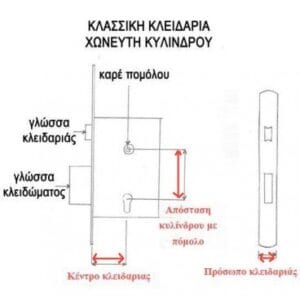

Lock technical characteristics
- cylinder center 35mm (A)
- cylinder-knob center 85mm (C)
- Lock Face 24mm(D)
| Description | Amm | Cmm | Dmm |
| Multitop Pro 3-Point Ball Lock “U Shape” | 35 | 85 | 24 |
