Navkom TM-90 Main Door Handle with Fingerprint Reader

SKU: N/A Categories: ,

The TM-90 is a main door handle featuring an integrated fingerprint reader. Its 40x20mm rectangular design allows for 90° angled mounting. The reader can be installed in front of or behind the handle. IP67 rated and CE certified.

The product comes in many variations, please consult the table in the “Additional Information” section.

Email Us For Prices

This item is on backorder and will take 4-6 weeks to ship

Description

TM-90 Main Door Handle with Fingerprint Reader.

The product comes in many variations, please consult the table in the “Additional Information” section.

Features and Specifications:

  • Rectangular handle dimensions: 40 × 20 mm.
  • Integrated fingerprint reader.
  • Mounting option: 90° angled attachment.
  • Flexible reader placement: front or rear of handle.
  • IP67 rated for outdoor use.
  • CE certified.
  • European manufactured.

Design and Installation: The TM-90 combines a sleek door handle with advanced biometric access control. Its rectangular design offers a modern aesthetic while providing practical functionality. The handle is mounted at a 90° angle, suitable for standard door designs and user preferences.

Fingerprint Reader Integration: The integrated fingerprint reader offers flexibility in placement. It can be installed either in front of or behind the handle, allowing for optimal positioning based on the specific door configuration and user convenience.

Applications: Ideal for main entrances in residential, commercial, or office settings where both style and security are priorities. The TM-90 provides a seamless blend of traditional door hardware with modern access control technology.

The TM-90 door handle with integrated fingerprint reader offers a sophisticated solution for secure and convenient access control, suitable for various architectural styles and security needs.

Connection Manual

Control Unit Instructions

Additional information

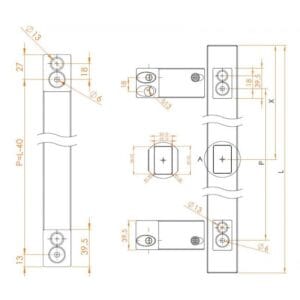

L P X Dimensions

600 mm, 400 mm, 200 mm, 800 mm, 600 mm, 200 mm, 1000 mm, 800 mm, 240 mm, 1500 mm, 1100 mm, 440 mm, 1800 mm, 1400 mm, 540 mm

Reader Orientation

Reader on Front, Reader on Back

Connection

WiFi, Stand Alone
