Technical Details

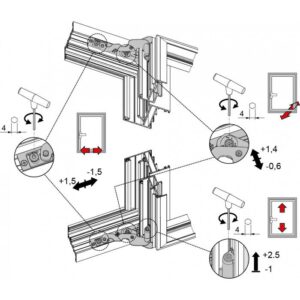

Sash opening to 180°. Maximum load capacity 100 kg. Assembly is simple, fast and easy using the special pre-assembled cams. When there is an additional fastening mechanism, you need to use the CHIC fastening element. Both hinges are adjustable (3D). If opening is obstructed, you need to use the FRIZ limitation arm. CAUTION: This hinge is designed to be used only on inward opening casements and is not suitable for outward opening casements.
Functions

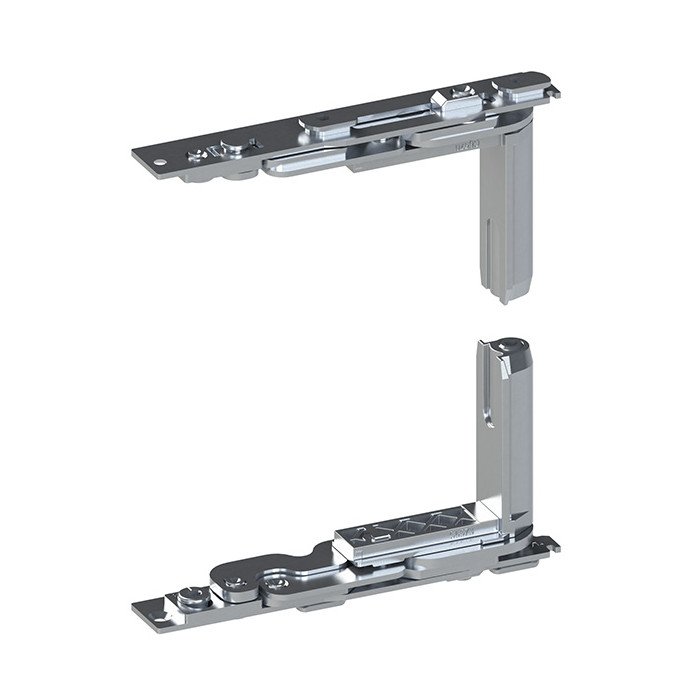

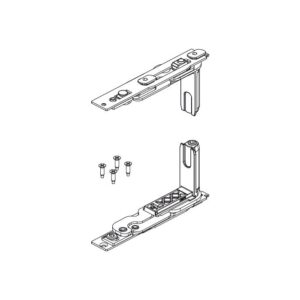

Set of hinges (top and bottom) for side-hung or secondary sash with tilt-and-turn CHIC 3D 100.
Capacity
Up to 100 kg.
Materials
Corner support made of zamak Connecting brackets and hinge plates made of zinc plated steel Pins made of 304 grade stainless steel and aluminium bronze Cams made of zinc plated steel.
TECHNICAL SPECIFICATION
| Cross-section type | C001-C002-C003-C004-C005-C006 |
| Hand | RX |
